Material Features
- Good resistance to thermal fatigue
- High toughness
- Good ductility

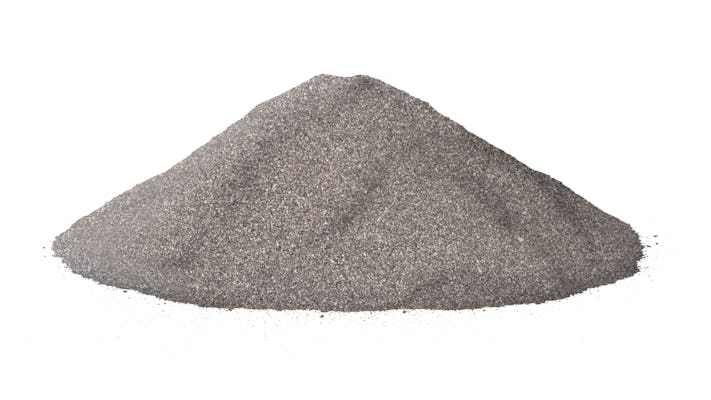

AMPLUS+ H13 metal powders have been specifically designed and optimised for use in Additive Manufacturing (AM).
AMPLUS+ metal powders are widely used and successfully proven in AM. AMPLUS+ H13 can be a challenging material when used in AM processes and care is required in design, geometries, and parameters to ensure a successful build.
AMPLUS+ H13 is an air hardening hot work steel that exhibits excellent toughness properties.

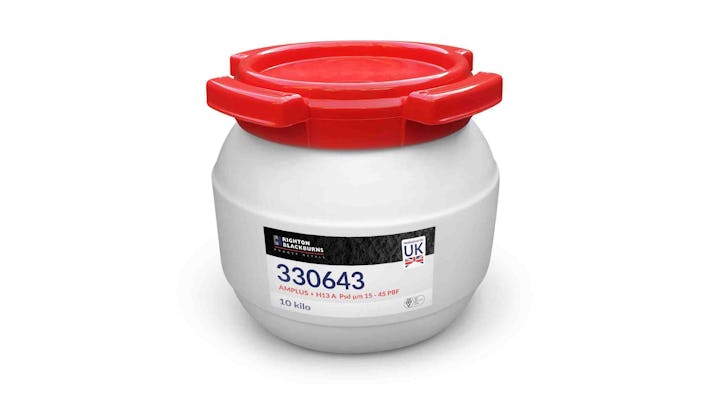

Our Tool Steel powder is available to purchase in 10kg security sealed containers or alternatively in 50kg drums.
Particle sizes available: |
---|
15-45 µm (PBF) |
20-53 µm (PBF) |
45-150 µm (DED) |
45-106 µm (EBM) |
Air hardening. Further information on heat treatment and stress relieving can be provided by our technical experts by contacting: sales@rbpowdermetals.co.uk
LSD | d10, d50, d90 reported |
Apparent Density | Measured and reported |
Flow | Measured and reported |
Density | 7.8 g/cm3 |
Thermal Conductivity @ 21°C | 28.6 W/mK |
Melting Point | 1427°C |
Coefficient of thermal expansion | 10.4 10-6 K-1 |
Part No. | AMPLUS+ H13 A |
PSD | 15 - 45μm |
Application | PBF |
Part No. | AMPLUS+ H13 B |
PSD | 20 - 53μm |
Application | PBF |
Part No. | AMPLUS+ H13 D |
PSD | 45 - 150μm |
Application | DED |
Part No. | AMPLUS+ H13 E |
PSD | 45 - 106μm |
Application | EBM |
Fe | bal. |
---|---|
Cr | 4.8 - 5.5 |
Mo | 1.1 - 5.5 |
Si | 0.8 - 1.2 |
V | 0.8 - 1.2 |
Si | ≤1.0 |
C | 0.35 - 0.42 |
Mn | 0.25 - 0.5 |
N | ≤0.1 |
O | ≤0.1 |
P | ≤0.03 |
S | ≤0.02 |
Nominal WT% |
