Material Features
- Biocompatible with the human body
AMPLUS+ CpTiGd2 metal powders have been specifically designed and optimised for use in Additive Manufacturing (AM).
AMPLUS+ CpTiGd2 metal powders are widely used and successfully proven in AM.
AMPLUS+ CpTiGd2 is pure titanium often used in
medical and biomedical applications.

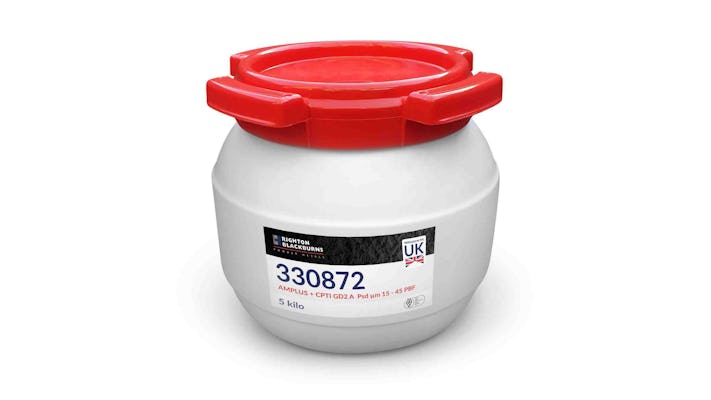

Our Titanium alloy powder is available to purchase in 5kg security sealed containers or alternatively in 50kg drums.
Particle sizes available: |
---|
15-45 µm (PBF) |
20-53 µm (PBF) |
45-150 µm (DED) |
45-106 µm (EBM) |
A heat treatment annealing cycle at 850°C for 2 hours is typical. Note: part size will impact the annealing time required.
Further information on heat treatment and stress relieving can be provided by our technical experts by contacting: sales@rbpowdermetals.co.uk
Part no. | AMPLUS+ CpTiGd2 A |
psd | 15-45μm |
Application | PBF |
Part no. | AMPLUS+ CpTiGd2 B |
psd | 20-53μm |
Application | PBF |
Part no. | AMPLUS+ CpTiGd2 D |
psd | 45-150μm |
Application | DED |
Part no. | AMPLUS+ CpTiGd2 E |
psd | 45-106μm |
Application | EBM |
General Properties | |
LSD | d10, d50, d90 reported |
Apparent Density | Measured and reported |
Flow | Measured and reported |
Ti | Bal. |
---|---|
Fe | 0.3 |
C | 0.1 |
O | ≤0.25 |
N | ≤0.03 |
H | ≤0.015 |
Other | ≤0.4 |
*Nominal WT% |
Generic Name | CpTi Grade 2 |
Generic Data - Wrought Material | |
Density | 4.512 g/cm3 |
Thermal Conductivity | 16.4 W/mK |
Melting Point | 1668°C |
Coefficient of thermal expansion | 8.6 x 10-6 K-1 |
