Material Features
- Good thermal conductivity
- Good corrosion resistance
- Light weight
AMPLUS+ AlSi10Mg metal powders have been specifically designed and optimised for use in Additive Manufacturing (AM).
AMPLUS+ AlSi10Mg metal powders are widely used and successfully proven in AM. AMPLUS+ AlSi10Mg is an aluminium alloy combining silicon and magnesium increasing the strength and processability of the alloy.
AMPLUS+ AlSi10Mg is processable across a wide range of AM machines. AMPLUS+ AlSi10Mg delivers excellent thermal conductivity.

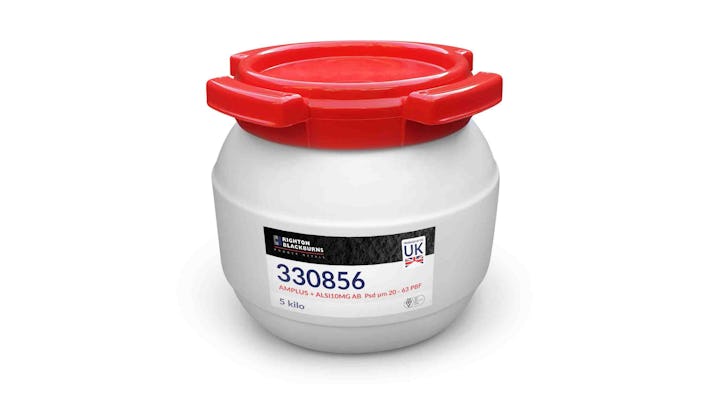

Our Aluminium alloy powder is available to purchase in 5kg security sealed containers or alternatively in 50kg drums.
Particle sizes available: |
---|
20-63 µm (PBF) |
45-150 µm (DED) |
Information on heat treatment and stress relieving can be provided by our technical experts by contacting: sales@rbpowdermetals.co.uk
LSD | d10, d50, d90 reported |
Apparent Density | Measured and reported |
Flow | Measured and reported |
Density | 2.68 g/cm3 |
Thermal Conductivity | 130 W/mK – 190 W/mK |
Melting Point | 570°C - 590°C |
Coefficient of thermal expansion | 20 10-6 K-1 to 21 10-6 K-1 |
Part No. | AMPLUS+ AlSi10Mg AB |
PSD | 20 - 63μm |
Application | PBF |
Part No. | AMPLUS+ AlSi10Mg D |
PSD | 45 - 150μm |
Application | DED |
Al | bal. |
Si | 9 - 11 |
Fe | 0.55 |
Mn | 0.45 |
Mg | 0.2 - 0.45 |
Ti | 0.15 |
O | ≤0.1 |
Zn | ≤0.1 |
Cu | ≤0.005 |
Pb | ≤0.005 |
Ni | ≤0.005 |
N | ≤0.005 |
Nominal WT% |
