Material Features
- Good corrosion resistance
- Good ductility
- High impact toughness
AMPLUS+ 316L metal powders have been specifically designed and optimised for use in Additive Manufacturing (AM).
AMPLUS+ 316L metal powders are widely used and successfully proven in AM. AMPLUS+ 316L processes well across the broad spectrum of AM machines and technologies due to their excellent fusion and melting characteristics in PBF and EBM applications.

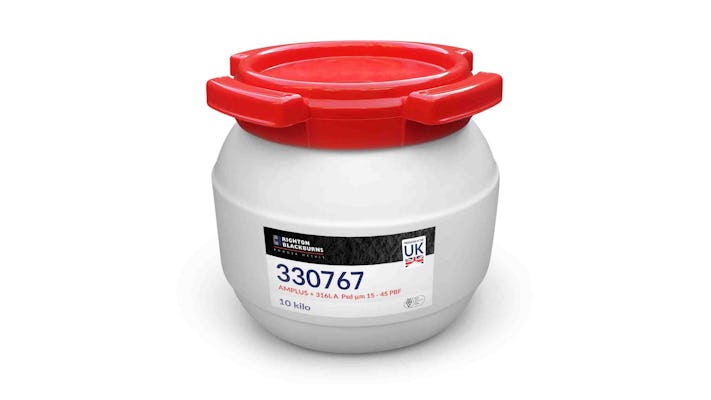

Our Stainless Steel powder is available to purchase in 10kg security sealed containers or alternatively in 50kg drums.
Particle sizes available: |
---|
15-45 µm (PBF) |
20-53 µm (PBF) |
45-150 µm (DED) |
45-106 µm (EBM) |
Heat treatment for AMPLUS+ 316L is not applicable for strengthening. Other traditional post processing techniques can be deployed including general machining, grinding etc. Further information can be provided by our technical experts by contacting: sales@rbpowdermetals.co.uk
LSD | d10, d50, d90 reported |
Apparent Density | Measured and reported |
Flow | Measured and reported |
Density | 7.99 g/cm3 |
Thermal Conductivity | 16.2 W/mK |
Melting Point | 1371°C - 1399°C |
Coefficient of thermal expansion | 16 10-6 K-1 |
Part No. | AMPLUS+ 316L A |
PSD | 15 - 45μm |
Application | PBF |
Part No. | AMPLUS+ 316L B |
PSD | 20 - 53μm |
Application | PBF |
Part No. | AMPLUS+ 316L D |
PSD | 45 - 150μm |
Application | DED |
Part No. | AMPLUS+ 316L E |
PSD | 45 - 106μm |
Application | EBM |
Fe | bal. |
---|---|
Cr | 16.0 - 18.0 |
Ni | 10.0 - 14.0 |
Mo | 2.0 - 3.0 |
Mn | ≤2.0 |
Si | ≤1.0 |
N | ≤0.1 |
O | ≤0.1 |
P | ≤0.045 |
C | ≤0.03 |
S | ≤0.03 |
Nominal WT% |
0.2% Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | E-modulus (GPa) | Impact Toughness (J) | Hardness (HV) | ||
---|---|---|---|---|---|---|---|
As Built | Horizontal | 547±3 | 676±2 | 43±2 | 197±4 | 150±28 | 198 HV0.5 ± 8 HV0.5 |
Vertical | 494±14 | 624±17 | 35±8 | 190±10 | 165±10 | 208 HV0.5 ± 6 HV0.5 |
